01 An Invitation to Network Analysis

The Structure of the Social Universe

Welcome to Network Analysis. This field offers a new lens for viewing the world: not as a collection of individuals, but as an interconnected web of relationships. We will move beyond individual statistics to understand how the structure of this web shapes behavior, outcomes, and dynamics.

We begin with a provocative question that reveals a core principle of networks. Consider your friends, and then consider their friends. On average, who is more popular: you or your friends?

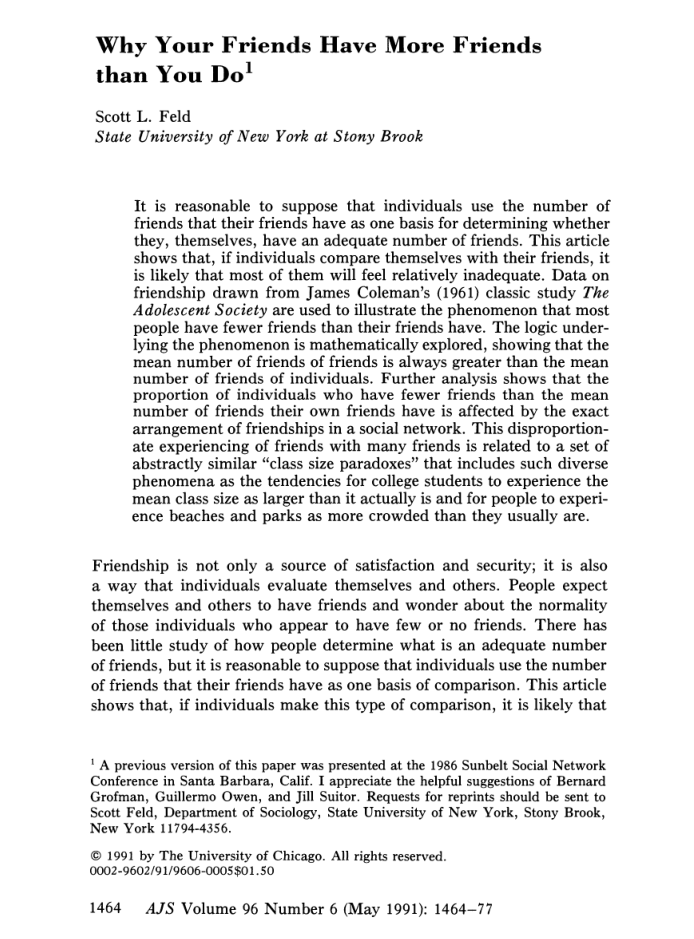

The mathematical answer, established by sociologist Scott Feld in 1991, is surprising: on average, your friends have more friends than you do. This is not a personal critique but a fundamental property of social networks known as the Friendship Paradox.

This paradox arises from a subtle sampling bias. When you survey your friends’ social circles, you are inherently more likely to “sample” highly popular individuals because, by definition, they are connected to more people and thus appear on more friendship lists. The paradox is an emergent property of the network’s structure, an outcome that cannot be understood by studying individuals in isolation. To unpack such puzzles, we need a formal framework.

The Network Analysis Pipeline: From Reality to Data

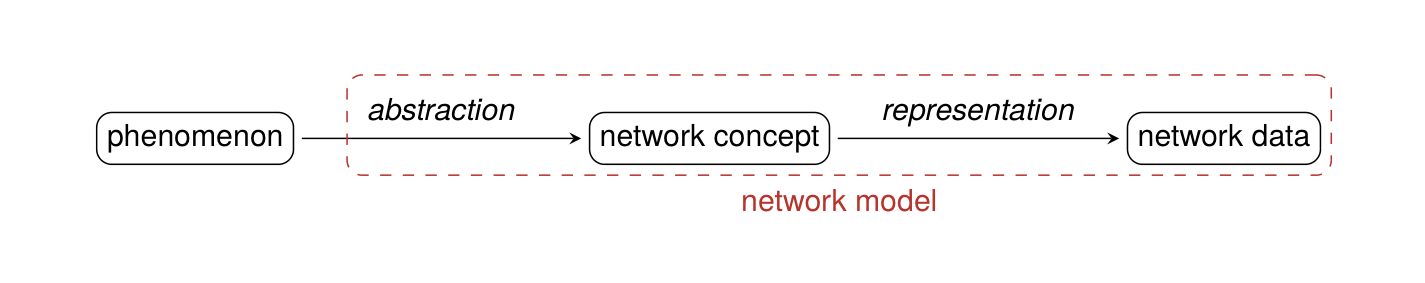

Network science provides a systematic method for translating complex real-world phenomena into formal, analyzable structures. This process follows a clear pipeline.

1. Phenomenon: Start with a real-world system of interest, the spread of a rumor, scientific collaborations, or protein interactions in a cell.
2. Abstraction (Network Concept): Simplify the system by defining its core components. Identify the fundamental units as nodes (or vertices) and the relationships between them as links (or edges). For example, in a friendship network, people are nodes and friendships are edges.
3. Representation (Network Data): Translate the abstract concept into a concrete mathematical object, such as a graph $G=(V,E)$, an adjacency matrix, or an edge list. This step produces the analyzable data.

This entire flow, from phenomenon to data, constitutes a network model. Its power lies in its generality; the same mathematical tools can analyze friendships, trade agreements, and neural pathways once they are represented as networks.

The Empirical Research Framework

To answer scientific questions with network models, we follow a structured research process designed for relational data.

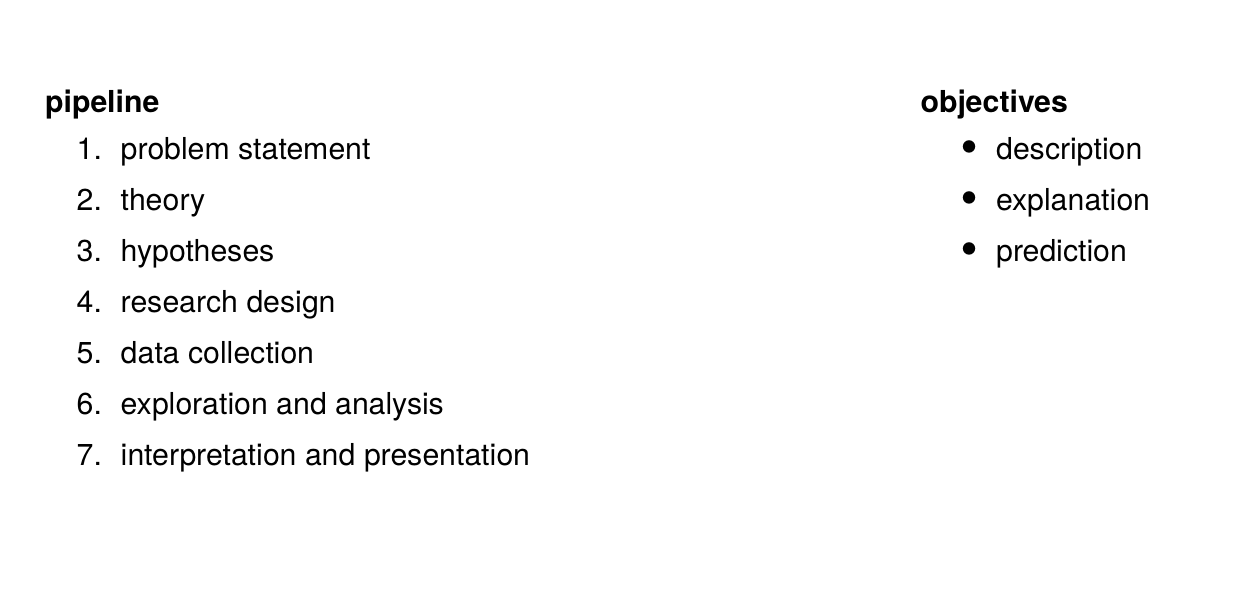

This research journey typically involves seven steps:

1. Problem Statement: Articulate the core question.
2. Theory: Propose a causal mechanism or logical framework to explain the phenomenon.
3. Hypotheses: Derive specific, falsifiable predictions from the theory.
4. Research Design: Define how to measure (operationalize) concepts and what data to use.
5. Data Collection: Gather the necessary primary or secondary data.
6. Exploration & Analysis: Apply network science tools to describe the data and test hypotheses.
7. Interpretation & Presentation: Translate formal results back into the context of the original problem and communicate the findings.

The ultimate objective of this process is to achieve one of three goals: Description (characterizing the system), Explanation (understanding its causes and consequences), or Prediction (forecasting its future states).

The Building Blocks of a Theory

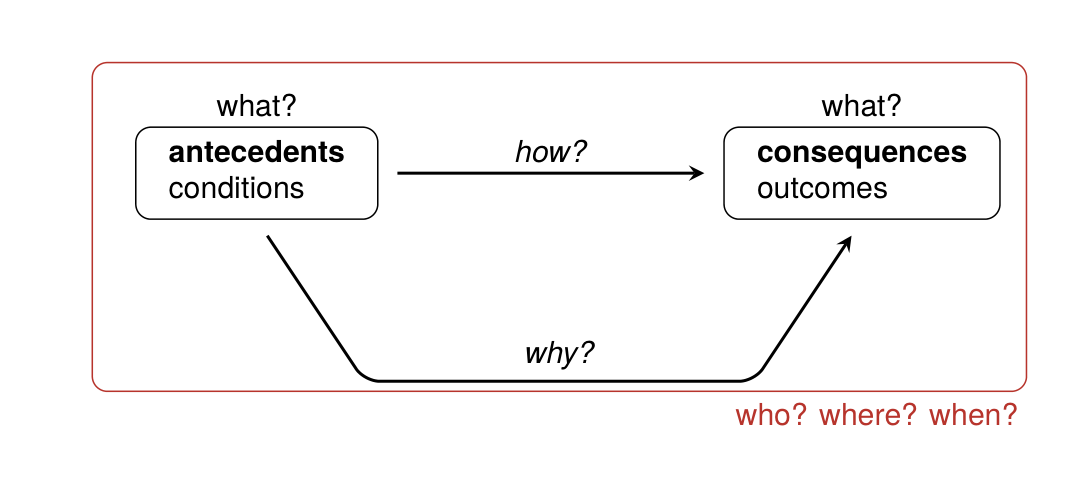

A strong theory moves beyond correlation to explain the “why” behind an observation. David Whetten’s (1989) framework identifies four essential components of a robust theory:

• What? (The Concepts): The core factors or variables, distinguished as antecedents (causes, inputs) and consequences (effects, outcomes).
• How? (The Relationship): The nature of the connection between the concepts. Is the relationship positive, negative, linear, or curvilinear?
• Why? (The Logic): The causal engine of the theory. This explains why the antecedents and consequences are linked in the proposed manner.
• Who, Where, When? (The Boundaries): The scope conditions that define the theory’s applicability, the populations, contexts, and time periods where it is expected to hold.

A classic example is the theory of network externalities (Katz & Shapiro, 1985).

• What: The number of users (antecedent) and the value of a service (consequence).
• How: A positive relationship.
• Why: A larger user base creates more potential connections, increasing the service’s utility.
• Boundaries: Applies to interconnected technologies like social media or telephone networks.

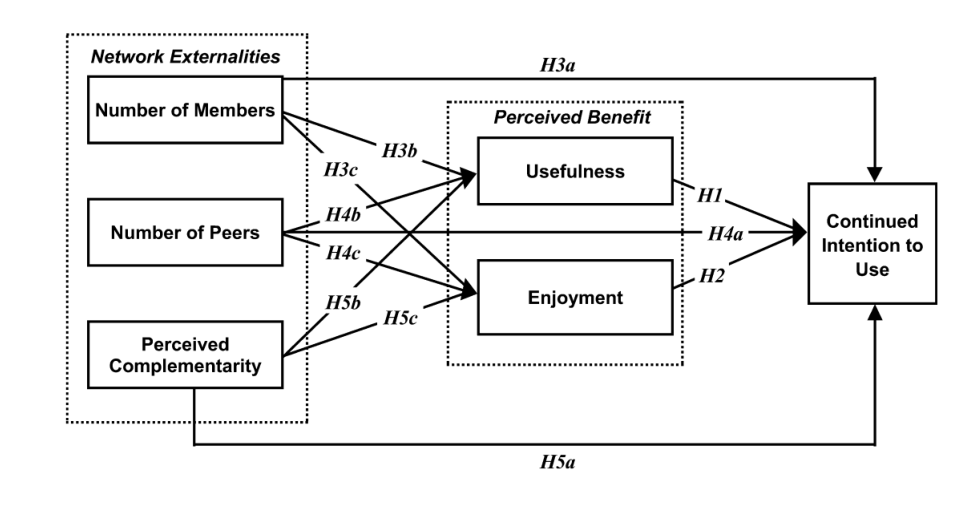

A study by Lin & Lu (2011) tested this by hypothesizing that a user’s number of peers positively affects a service’s perceived usefulness, which in turn drives continued use. Their statistical model is a direct operationalization of this theory.

Case Study: The Strength of Weak Ties

Mark Granovetter’s 1973 paper, “The Strength of Weak Ties,” is a seminal example of the research process in action.

• Phenomenon: How do people find jobs?
• Theory: Granovetter theorized that social structure is composed of strong ties (close, emotionally intense relationships like family) and weak ties (distant, infrequent relationships like acquaintances).

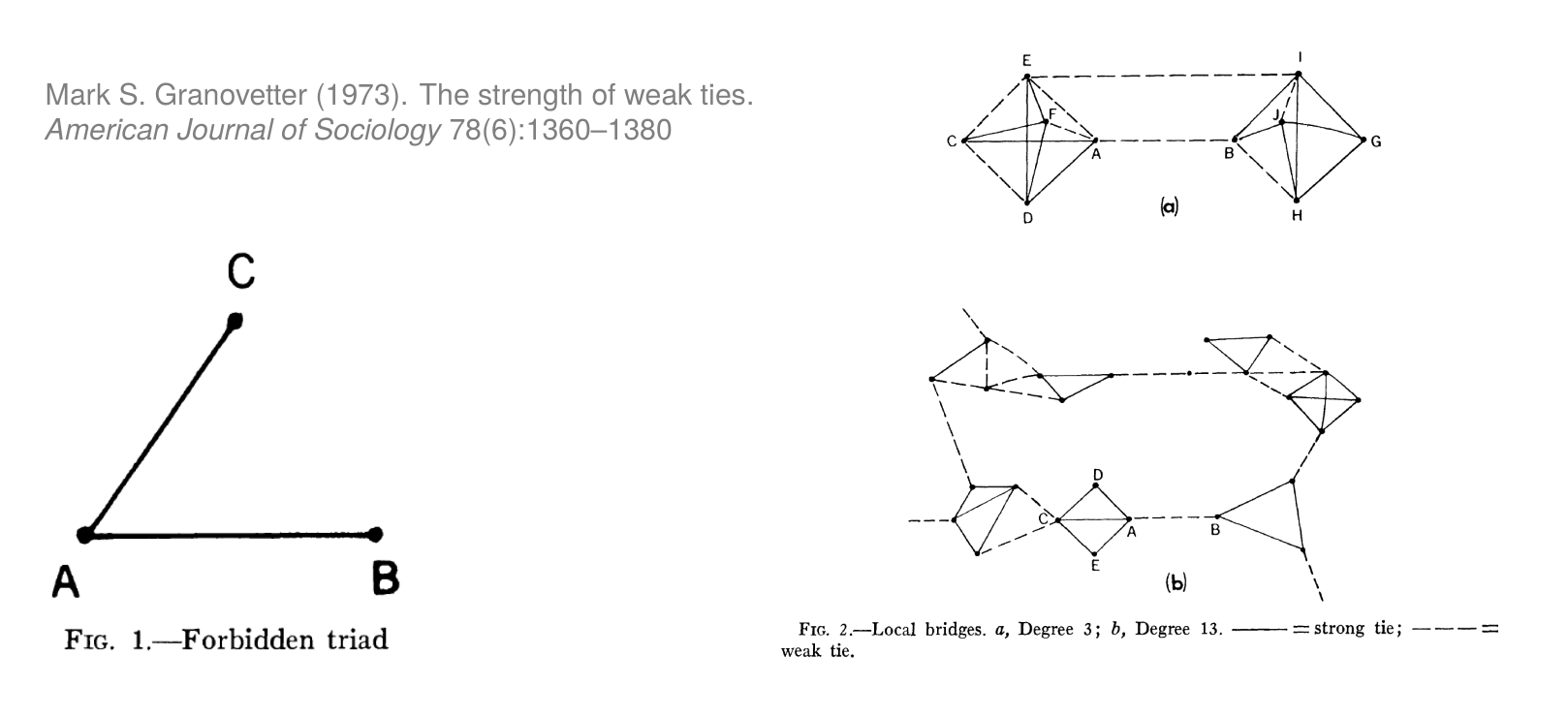

• The Mechanism: Triadic Closure: His argument centered on the local structure of triads (groups of three). He noted that if person A has a strong tie to B and a strong tie to C, the absence of a tie between B and C (the “Forbidden Triad”) is structurally unstable. Social pressure encourages B and C to form at least a weak tie, a process called triadic closure.

• Hypothesis: This has a profound consequence. If our strong ties are clustered in dense, overlapping groups due to triadic closure, then the connections that link these different clusters, the bridges across “structural holes”, must necessarily be weak ties. If a bridge were a strong tie, closure would have already filled in the surrounding gaps, and it would no longer be a bridge. Therefore, Granovetter hypothesized that novel information, like job opportunities, is more likely to flow through weak ties.
• Findings & Legacy: By interviewing people who had recently found new jobs, Granovetter confirmed his hypothesis. Most people heard about their job not from a best friend, but from an old colleague or a friend of a friend. Strong ties provide emotional support, but weak ties provide access to opportunity. This 50-year-old insight remains relevant; a 2012 Facebook study confirmed that the vast majority of new information reaches users via their weak ties, which are crucial for preventing insular information bubbles.

A Fundamental Challenge: The Selection-Influence Problem

Granovetter’s work highlights a central challenge in network analysis: disentangling cause and effect. We frequently observe homophily, the tendency for similar people to connect. But does similarity cause the connection, or does the connection foster similarity?

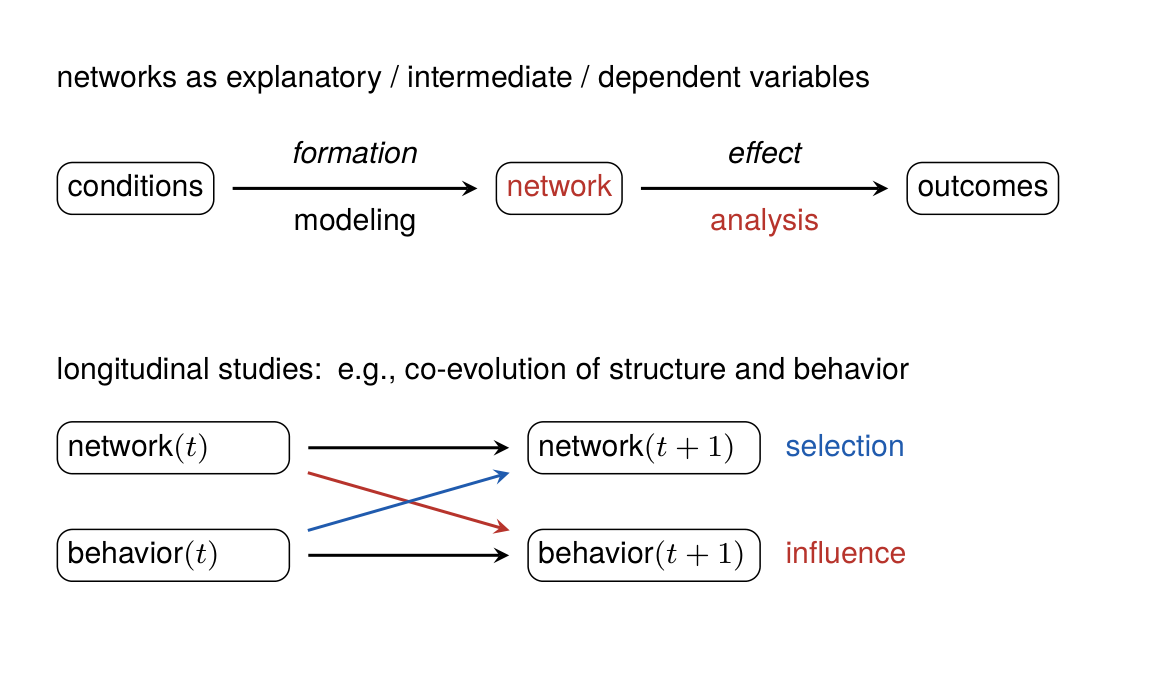

This “chicken-or-egg” problem involves two distinct, often co-occurring mechanisms:

1. Social Selection: Attributes drive tie formation. Individuals with shared attributes or behaviors select each other as friends.
   • Example: Students who enjoy chess (behavior(t)) seek each other out and form friendships (network(t+1)). Here, the attribute causes the tie.
2. Social Influence (Assimilation): Ties drive attribute formation. An individual’s attributes or behaviors are influenced by their social circle.
   • Example: A group of friends (network(t)) persuades a non-chess-playing member to take up the game (behavior(t+1)). Here, the tie causes the attribute.

Disentangling these two processes is notoriously difficult and typically requires longitudinal data that tracks the co-evolution of networks and behaviors over time.

The Nature of Network Data: Structured by Design

To analyze networks, we must first define our data precisely. A variable is a mapping from a domain (the units of observation, $S$) to a range (the potential values, $\mathcal{X}$): $x:S\to \mathcal{X}$.

In classical statistics, the domain $S$ is an unstructured set of independent individuals. The crucial difference in network science is that the domain itself is structured. Our units of observation are not independent individuals but interdependent dyads (pairs of nodes).

A network variable is one where the domain is a dyadic domain, $D\subseteq N\times A$, where $N$ and $A$ are sets of nodes.

• One-mode network: Relations occur among a single set of nodes (e.g., friendships among students). Here, $N=A$.
• Two-mode network (or affiliation network): Relations occur between two distinct sets of nodes (e.g., students $N$ attending classes $A$). Here, $N\cap A=\varnothing$.

A Critical Distinction: Absent Ties vs. Structural Zeros

The definition of the domain $D$ forces a vital conceptual distinction that is crucial for correct analysis.

• An absent tie is a potential relationship within the domain that is not realized. For a dyad $(i,j)\in D$, we observe its value to be zero. For example, Alice and Bob are both students in a school (so a friendship is possible), but they are not friends. An absent tie is a meaningful social fact.
• A structural zero is a dyad that is not in the domain to begin with. The relationship is not just absent, it is conceptually impossible or disallowed by the system’s rules. For such a pair, $(i,j)\notin D$. For example, in a network of international trade, a country cannot trade with itself, so the (USA, USA) dyad is a structural zero. In a network of heterosexual marriages, a tie between two men is a structural zero.

Failing to distinguish these two types of “non-ties” can lead to serious analytical errors. An absent tie is a data point (with a value of zero), while a structural zero is an architectural constraint of the network.

With this foundational framework, we are ready to build our analytical toolkit, starting with the fundamental structural properties of networks.
